Slide 5

CSCI 201 Guest Lecture: Data Modeling

What is a data model? (cont.)

School Schedule Example (cont.)

In the entity-relationship model, notice that the professor and student entities have a duplicate attribute, "name." We can eliminate the duplication by extending the entity-relationship model to an object model by adding inheritance.

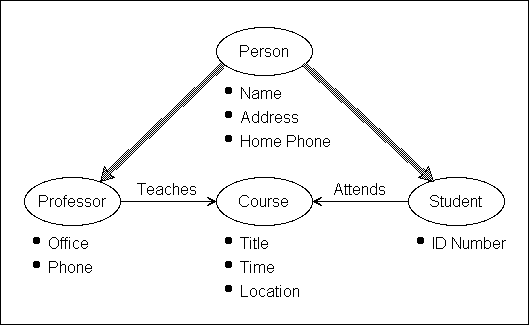

Now we call the entities objects. Add a "person" object and the "is-a" (inheritance) relationship (denoted by heavy gray arrow):


Object Model

The object model maps directly to C++ or Java code. Objects are class instances. Attributes are private data in the class. Relationships are aggregation of objects within classes. The arrow points away from the aggregating class.
