3D Fixture Images

Strut fixtures use seven modular compression struts in a four-walled fixturing box to fully constrain a faceted part. We have an algorithm to automatically design optimal fixtures for this class of parts.

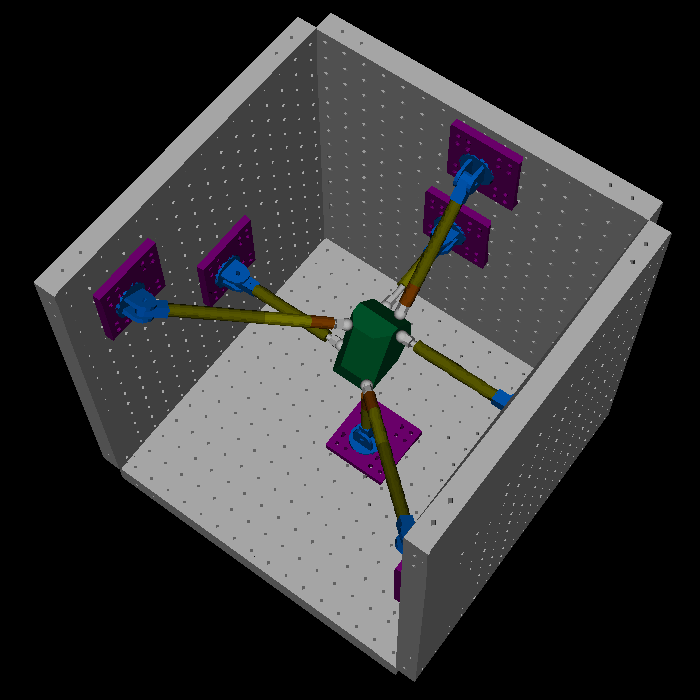

These two images were rendered using AutoCAD:

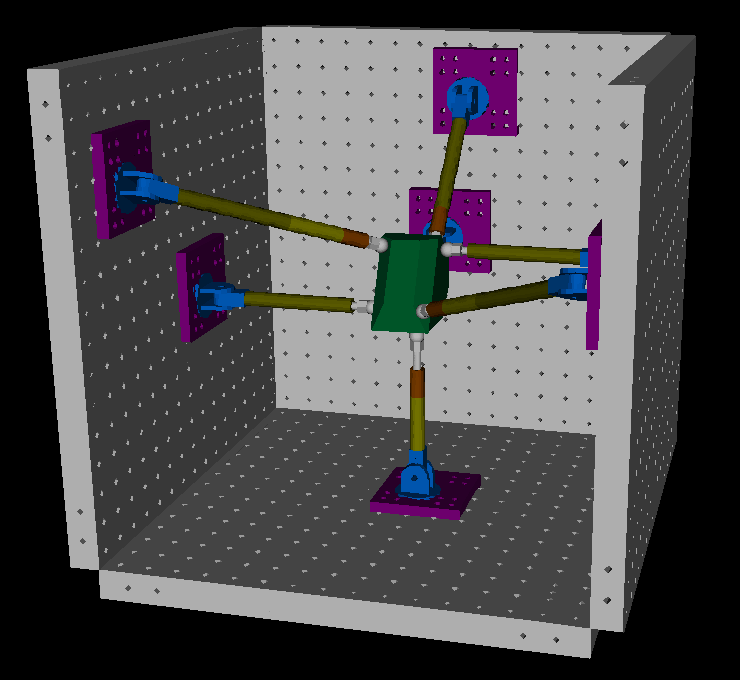

This is different view of the same strut fixture:
